How MIE's Proxmox Cluster Works

MIE's Opensource Proxmox Cluster is a robust, automated container hosting environment designed for developers and researchers. It leverages open-source technologies to provide scalable, secure, and efficient infrastructure for deploying applications.

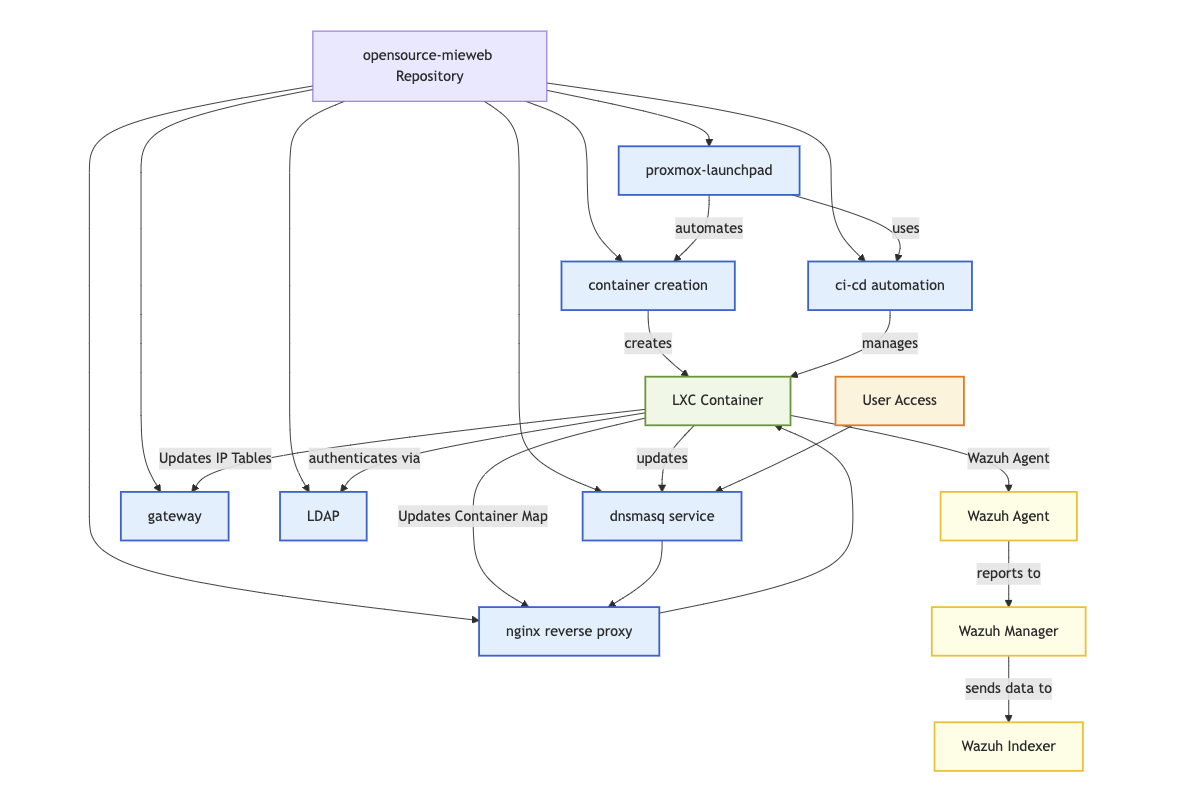

MIE Cluster Architecture Overview

Note

In this diagram, the gateway represents our PVE1 hypervisor machine. This serves as the gateway between the internal subnet of the cluster (10.15.0.0/16) and external traffic.

Cluster Architecture & Hypervisors​

Our cluster consists of two Proxmox hypervisors:

  • PVE1
  • PVE2

Each of these machines are Dell PowerEdges, each with 500 GiB of RAM and 72 Core CPUs.

We use a simple load balancing strategy: odd-numbered containers are deployed to PVE1, and even-numbered containers are deployed to PVE2. This ensures balanced resource usage and high availability across the cluster.

Core Services & Workflow​

  • Dnsmasq Service: Manages DHCP and DNS, providing automatic subdomain routing for containers via wildcard DNS entries.
  • NGINX Reverse Proxy: Dynamically resolves backend IPs and ports for each container using a registry file, and manages SSL certificates for secure access.
  • Gateway: Handles network routing, access control, and daily cleanup scripts for cluster maintenance.
  • LDAP Authentication: Centralized LDAP server manages user authentication for all containers, integrating with Proxmox VE user management and optional 2FA.
  • Container Creation: Automated scripts handle the full lifecycle of LXC containers, including creation, configuration, and registration with the proxy and DNS infrastructure.
  • CI/CD Automation: Helper scripts and workflows manage container updates, existence checks, and cleanup operations for efficient hosting.
  • Proxmox LaunchPad: GitHub Action that automates container deployment, service installation, and application startup directly from repository pushes.
  • Wazuh Security: All containers and hypervisors run Wazuh agents, sending logs to a centralized manager for threat detection and active response.

How It Works​

  1. User Access: Users access their containers via subdomains routed by DNS and NGINX.
  2. Container Lifecycle:
    • Containers are created via web GUI, CLI, or GitHub Action
    • DHCP assigns IP, ports are mapped, and NGINX updates its registry
    • LDAP authenticates users for secure access
    • Wazuh agents monitor security events
  3. Automated Deployment:
    • Push to GitHub triggers Proxmox LaunchPad
    • Containers are provisioned, dependencies installed, and services started
    • DNS and proxy are updated for seamless access
  4. Security & Monitoring:
    • Wazuh provides real-time threat detection and response
    • Metrics for CPU, RAM, Swap, and SSD usage are monitored for each container

Key Features​

  • Automated DNS & Proxy: Instant subdomain and port mapping for new containers
  • Centralized Authentication: LDAP integration for secure, unified access
  • CI/CD Integration: GitHub Actions for automated deployment and updates
  • Security Monitoring: Wazuh agents for vulnerability detection and active response
  • Load Balanced Hypervisors: Odd containers on PVE1, even containers on PVE2

Getting Started​

  • Create containers via the web GUI, CLI, or GitHub Action
  • Monitor and manage your containers through the Proxmox web interface
  • Integrate your projects with Proxmox LaunchPad for automated deployments
  • Review container metrics and security events in the dashboard

For more details, see our GitHub repository and explore the documentation for step-by-step guides!
